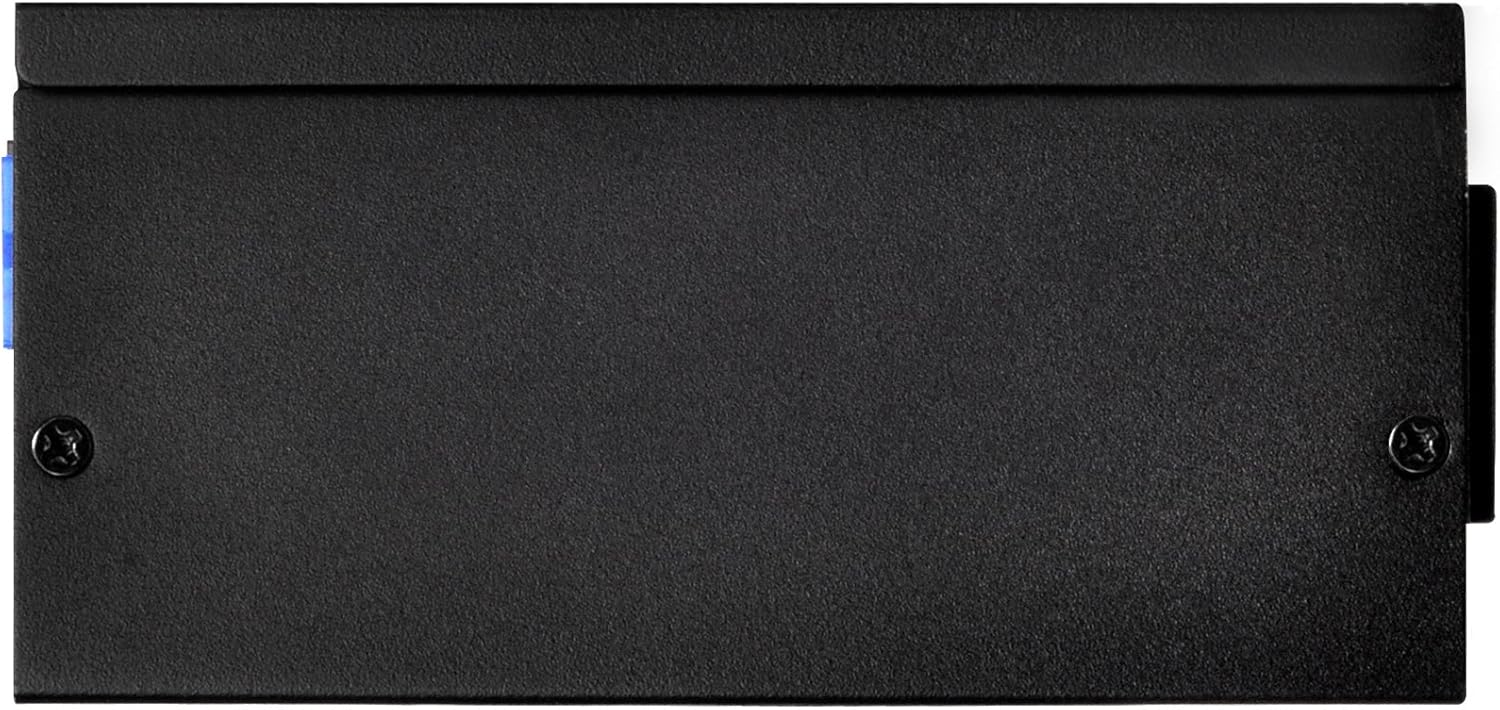

SilverStone Technology 700W,SFX-L, Silent 120mm Fan with 036Dba, Fully Modular Cable Power Supply SX700-LPT
Bеѕt Rеvіеw SilverStone Technology 700W,SFX-L, Silent 120mm Fan with 036Dba, Fully Modular Cable Power Supply SX700-LPT A quick review
So you can check out the other reviews at Amazon.com
only with $ 149.99
| Series | PS-SX700-LPT |
| Brand | SilverStone Technology |
| Connector Type | 6-Pin |
| Output Wattage | 700 Watts |
| Form Factor | SFX |
| Wattage | 700 watts |
| Item Dimensions LxWxH | 9 x 3 x 8 inches |
| Item Weight | 5 Pounds |
| Power Supply Design | Full Modular |
| Maximum Input Voltage | 264 Volts |
- 700W continuous power output rated for 24/7 operation
- High efficiency with 80 plus Platinum certification. Input Voltage: 90V ~ 264V, Operating temperature: 0 ~ 40 degree Celsius
- Silent running 120mm fan with advanced semi-fanless operation
- 100% modular short cables with Flexible flat arrays
- Support Quad PCI-E 8/6pin connectors. Please Note: KIndly refer the User Manual before use.
From the manufacturer
SilverStone's SFX-L Power Supply Series
SilverStone offers two product lines within its SFX-L family of power supply products: SX for units with a 120mm fan, and the exclusive Nightjar (NJ) series of silent, fanless models.
The SX700-LPT takes advantage of the versatile SFX-L form factor
For small form factor enthusiasts, standard SFX power supplies offer an excellent combination of size, power, and affordability. At 100mm deep, however, they are limited to 92mm fans. SilverStone longer variation of the SFX form factor called SFX-L. At 130mm long, an SFX-L power supply has space for a 120mm fan, thus its maximum load noise is not only lower in intensity (due to a slower fan speed), but also lower in pitch (due to larger fan size).
- Silent running 120mm FDB fan with advanced semi-fanless operation
- Supports quad PCI-E 8/6pin connectors
- Utilizes all Japanese capacitors
Efficiency and power in one package:
 |
 |
 |
|---|---|---|
Semi-fanless operationUltra-quiet 120mm fan with intelligent RPM control guarantees cool performance and silent operation with minimum of 18dBA during fan operation. The fanless mode operation deactivates when PSU loading reaches 30%. | Extensive connectivity1 x 24 / 20-Pin motherboard connector（300mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（400mm） 2 x 8 / 6-Pin PCIE connector（400mm / 150mm） 2 x 8 / 6-Pin PCIE connector（550mm / 150mm） 6 x SATA connector（300mm / 200mm / 100mm x 2） 3 x SATA connector（600mm / 150mm / 150mm） 3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm） 1 x 4-Pin Floppy adapter connector（100mm） | Big power output in a small package+3.3V: 22A Max +5V: 22A Max +12V: 58.4A/700W Max |
 |  |  |  | |
|---|---|---|---|---|
| SST-SX500-LG | SST-SX700-LPT | SST-SX800-LTI | SST-NJ450-SXL | |
| 80 Plus Level | Gold | Platinum | Titanium | Platinum |
| Wattage | 500W | 700W | 800W | 450W |
| Fan Size | 120mm | 120mm | 120mm | Fanless |
| Dimensions | 125 mm (W) x 63.5 mm (H) x 130 mm (D) | 125 mm (W) x 63.5 mm (H) x 130 mm (D) | 125 mm (W) x 63.5 mm (H) x 130 mm (D) | 125 mm (W) x 63.5 mm (H) x 130 mm (D) |
| Power Density | 484W per liter | 678W per liter | 775W per liter | 436W per liter |
| Fanless Modes | None | Passive at <30% (200W) loads | Passive at <20% (160W) loads | Passive under all loads |
| ATX Compatibility | With included bracket | With optional SilverStone PP08B bracket | With optional SilverStone PP08B bracket | With optional SilverStone PP08B bracket |
Product Description
For small form factor enthusiasts, the standard sfx power supply form factor has excellent combination of size, power, and affordability. At 100mm deep, however, the standard sfx PSU is also limited in fan size to 80mm or 92mm. While advances in engineering and components have made modern high-end sfx PSUs quieter than ever, there is still inherent limitation with these fans' ability to dissipate heat at maximum loading conditions while maintaining satisfactory noise profile for users sensitive to higher-pitch sounds. With this in mind, SilverStone has released a “lengthened” variation of the sfx form factor called, sfx-l. With 30mm of added depth, a sfx-l power supply has enough room to fit a 120mm fan, thus its maximum load noise can be not only lower in intensity (via slower fan speed), but also lower in pitch (due to larger fan size). the SX700-LPT marks another milestone in SilverStone's pursuit of higher quality and more capable small form factor power supplies. At 700W, it includes all features available from top of the line SilverStone PSUs such as 80 plus Platinum efficiency, modular flexible flat cables, all Japanese capacitors and advanced semi-fanless capability.
